Koyorad: Alloy Radiator: Rad. Swift 1.3 i * Man. 02/05-
Upgrade your Suzuki Swift 1.3L manual (2002–2005, ZC11/ZD11 chassis) with the premium Koyorad KV101969R alloy radiator. This performance-grade unit features a 36 mm Type-M high-density core, delivering enhanced coolant volume and heat dissipation without sacrificing fitment in the compact engine bay. Constructed from lightweight aviation-grade aluminum with precision TIG-welded end tanks and Nocolok-brazed cores, it offers OEM-level durability and reliability . Designed as a direct-fit, bolt-in replacement, it retains your stock fans, hoses, mounts, and filler neck—making installation effortless. Ideal for improving thermal stability during everyday use and spirited driving.
USA Part Nos.: N/A
OEM Part Nos: 1770063J00
Car Models: Swift III 1.3/1.5/1.6 11/04-
Engine code(s): M13A, M16A

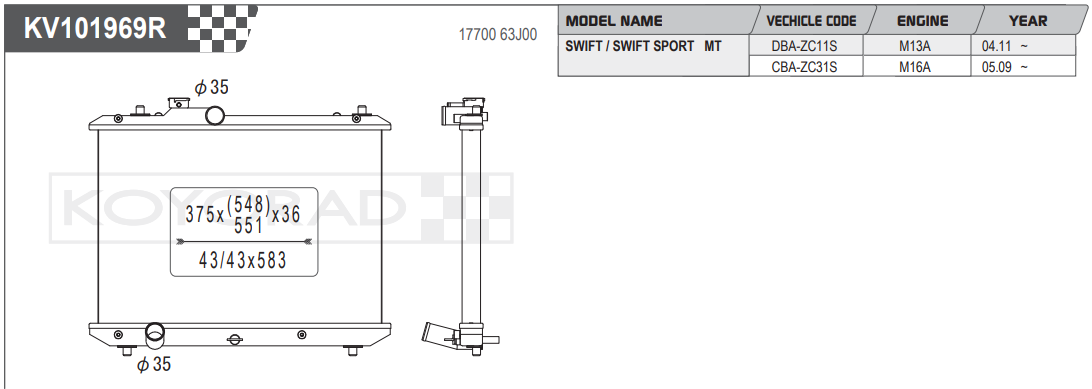

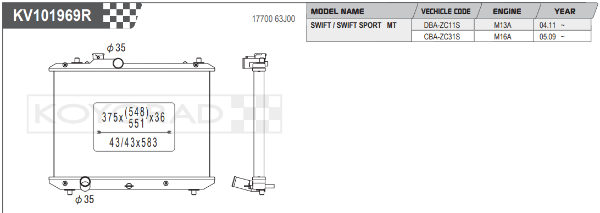

Diagrams:
Koyorad Code Notes
KS* 25mm core thickness, 1 row
KV* 36mm core thickness, 2 row
KH* 48mm core thickness, 2 row
KL* 53mm core thickness, 2 row
V / U06* at the end = deviation from OE
R* at the end = widerfin pitch
N* at the end = N flow, a partition in the tank to create N shape coolant flow for better cooling efficiency, triple pass
Material is Full Aluminum
Transmission - ALL MT type (No oil cooler), except for models with w/ OC indication. AT needs external oilcooler.
Fillerneck - All radiators with fillerneck are excl caps, these require the old system caps.
Please note that all cross references information are subject to errors and changes. Stock Images Used. Actual Product May Vary.
