Koyorad: Alloy Radiator: Rad. Sylvia/180/200/240SX Man. 10/93-11/94
Upgrade your Nissan Silvia S14/S15 (1993–2002, SR20DET manual) with the Koyorad KH020369 Alloy Radiator. Featuring a thick 48 mm HH-Series Hyper-Core, this performance radiator delivers up to 35% more cooling capacity with ultra-high fin density for superior heat transfer during spirited driving or track use. Precision-built in Japan using Nocolok brazing and hand TIG welding, the radiator ensures exceptional strength, leak-free reliability, and corrosion resistance. Its N‑Flo dual-pass coolant routing increases coolant dwell time, improving thermal performance in low airflow conditions. Designed as a plug-and-play upgrade, it retains OEM mounts, fan shroud, hoses, and includes a billet filler neck plus a 1/8″ NPT accessory port—no modifications required
USA Part Nos.: N/A
OEM Part Nos: 2140069F00, 2141069F00
Car Models: Silvia / 200SX S14/S15 2.0 10/93-
Engine code(s): SR20DET

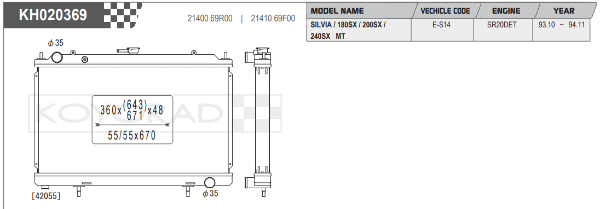

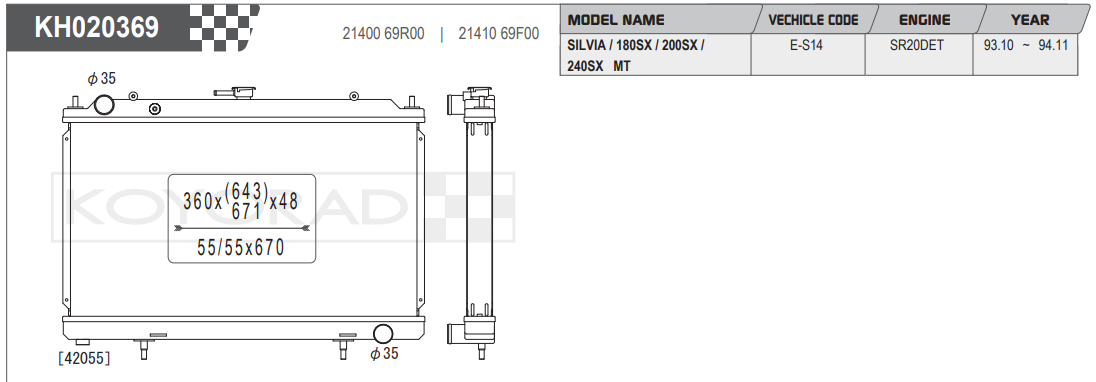

Diagrams:
Koyorad Code Notes
KS* 25mm core thickness, 1 row
KV* 36mm core thickness, 2 row
KH* 48mm core thickness, 2 row
KL* 53mm core thickness, 2 row
V / U06* at the end = deviation from OE
R* at the end = widerfin pitch
N* at the end = N flow, a partition in the tank to create N shape coolant flow for better cooling efficiency, triple pass
Material is Full Aluminum
Transmission - ALL MT type (No oil cooler), except for models with w/ OC indication. AT needs external oilcooler.
Fillerneck - All radiators with fillerneck are excl caps, these require the old system caps.
Please note that all cross references information are subject to errors and changes. Stock Images Used. Actual Product May Vary.
