Koyorad: Alloy Radiator: Rad. Sunny Wagon man. '90-
Upgrade your Nissan Sunny/Sentra Wagon (B13, 1990, manual transmission) with the Koyorad KL020308R double-core alloy radiator. Featuring a robust 53 mm core and all‑aluminium construction, this high-performance radiator delivers excellent heat dissipation and durability compared to the OEM unit. It’s precision-built with TIG‑welded end tanks and Nocolok-brazed cores for reliable, leak-free operation. Engineered as a direct-fit bolt-in replacement, it installs using your stock fan shroud, hoses, and mounts—no modifications needed. Whether for daily driving, occasional towing, or spirited routes, this radiator enhances thermal performance and longevity.
USA Part Nos.: N/A
OEM Part Nos: 2141064Y00, 2141057Y00, 2141057Y01, 2141057Y02, 2141062Y01, 2141064Y01
Car Models: 100NX / NX / NX1600 / Sunny / Pulsar / Sentra 1.3/1.4/1.5/1.6 01/90-
Engine code(s): GA15DS, GA15DE, GA13DS, GA13DE

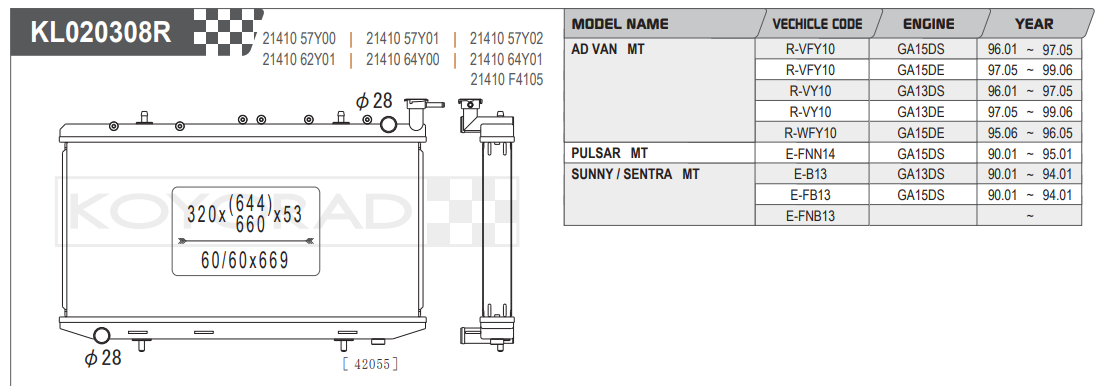

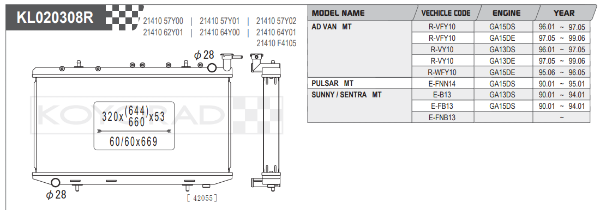

Diagrams:
Koyorad Code Notes
KS* 25mm core thickness, 1 row
KV* 36mm core thickness, 2 row
KH* 48mm core thickness, 2 row
KL* 53mm core thickness, 2 row
V / U06* at the end = deviation from OE
R* at the end = widerfin pitch
N* at the end = N flow, a partition in the tank to create N shape coolant flow for better cooling efficiency, triple pass
Material is Full Aluminum
Transmission - ALL MT type (No oil cooler), except for models with w/ OC indication. AT needs external oilcooler.
Fillerneck - All radiators with fillerneck are excl caps, these require the old system caps.
Please note that all cross references information are subject to errors and changes. Stock Images Used. Actual Product May Vary.
