Koyorad: Alloy Radiator: NISSAN Datsun 510
Upgrade your Datsun/Nissan 510 (1968–1973, 1.6 L manual) with the Koyorad HH-Series 48 mm alloy radiator (KH022598 / HH022598). Featuring a thick, high-efficiency core with ultra-high fin density, this radiator delivers up to 35% more cooling capacity, doubling coolant volume for improved thermal stability during spirited driving or track use. Constructed with all-aluminum precision, it’s Nocolok-brazed, TIG-welded, and polished to a mirror finish for durability and timeless appeal. The direct-fit design ensures a bolt-in replacement with factory fan shrouds, hoses, and mounts—no modifications required. Includes a billet filler neck and 1/8″ NPT accessory port for aftermarket sensor support.
USA Part Nos.: HH022598
OEM Part Nos: N/A
Car Models: Bluebird / 1600 510 1.6 10/67-

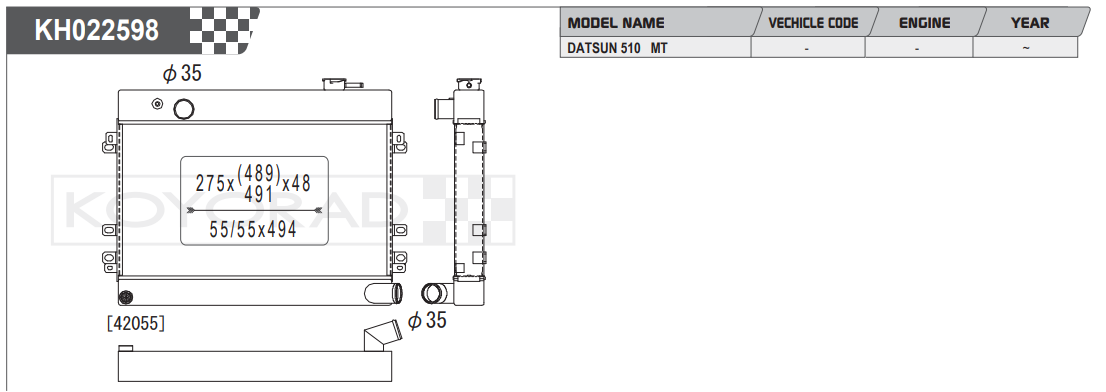

Diagrams:
Koyorad Code Notes
KS* 25mm core thickness, 1 row
KV* 36mm core thickness, 2 row
KH* 48mm core thickness, 2 row
KL* 53mm core thickness, 2 row
V / U06* at the end = deviation from OE
R* at the end = widerfin pitch
N* at the end = N flow, a partition in the tank to create N shape coolant flow for better cooling efficiency, triple pass
Material is Full Aluminum
Transmission - ALL MT type (No oil cooler), except for models with w/ OC indication. AT needs external oilcooler.
Fillerneck - All radiators with fillerneck are excl caps, these require the old system caps.
Please note that all cross references information are subject to errors and changes. Stock Images Used. Actual Product May Vary.
