Koyorad: Alloy Radiator: NISSAN Armada Titan 04-06
Upgrade your Nissan Titan or Armada (2004–2015, compatible with Infiniti QX56) with the Koyorad HH-Series 48 mm Alloy Radiator (Part No. KH021687). Crafted with a high-density core and ultra-efficient fin design, this all-aluminum radiator offers 20–30% better heat dissipation than standard OEM units. Hand-built in Japan using TIG welding, Nocolok brazing, and heliarc quality standards, it ensures reliability, durability, and a polished finish. Designed for direct-fit installation, it retains factory hoses, mounts, fan shroud, and includes a billet filler neck and 1/8″ NPT sensor port—no modifications needed. Please note: this radiator does not include an internal transmission cooler, so an external trans cooler is required for automatic transmission models. Owners report much cooler running temps and an easy, seamless installation
USA Part Nos.: HH021687
OEM Part Nos: 214607S000
Car Models: Titan / Armada / Frontier / QX / QX56 A60 5.6 10/03-

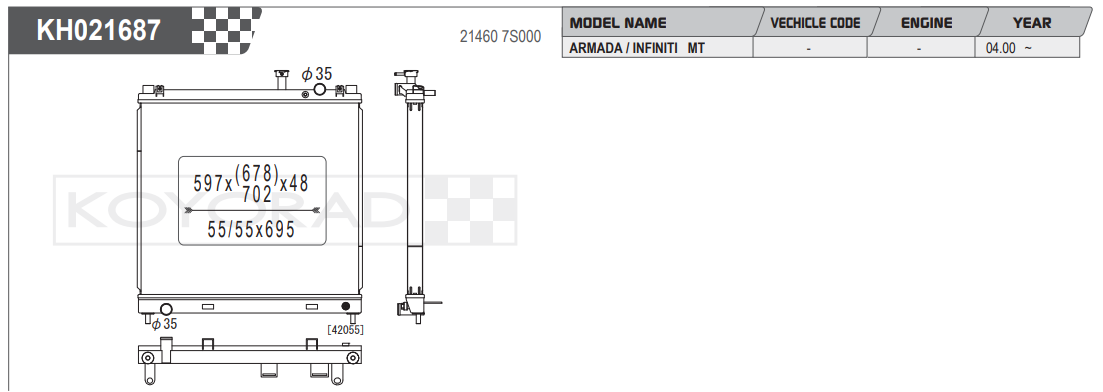

Diagrams:
Koyorad Code Notes
KS* 25mm core thickness, 1 row
KV* 36mm core thickness, 2 row
KH* 48mm core thickness, 2 row
KL* 53mm core thickness, 2 row
V / U06* at the end = deviation from OE
R* at the end = widerfin pitch
N* at the end = N flow, a partition in the tank to create N shape coolant flow for better cooling efficiency, triple pass
Material is Full Aluminum
Transmission - ALL MT type (No oil cooler), except for models with w/ OC indication. AT needs external oilcooler.
Fillerneck - All radiators with fillerneck are excl caps, these require the old system caps.
Please note that all cross references information are subject to errors and changes. Stock Images Used. Actual Product May Vary.
