Koyorad: Alloy Radiator: Nissan Sylvia V8 Transplant Radiator
Upgrade your Nissan Silvia S13/S14 V8 swap or SR20/KA24 turbo build with the Koyorad KL020539V dual-pass alloy radiator featuring a thick 53 mm HH-Series Hyper core and advanced N-Flo dual-pass coolant routing. Designed specifically for left–right crossflow setups in V8 conversions, this all‑aluminum, TIG-welded and Nocolok-brazed unit delivers high-density cooling capacity, up to 35% better thermal efficiency over OEM radiators. It installs via a direct-fit using existing fan shrouds, hoses, and mounts, with a billet filler neck and drain plug included—perfect for high-output engines in racing or street builds
USA Part Nos.: RH020539N
OEM Part Nos: N/A
Car Models: Silvia / 240SX S13 2.4 05/88-

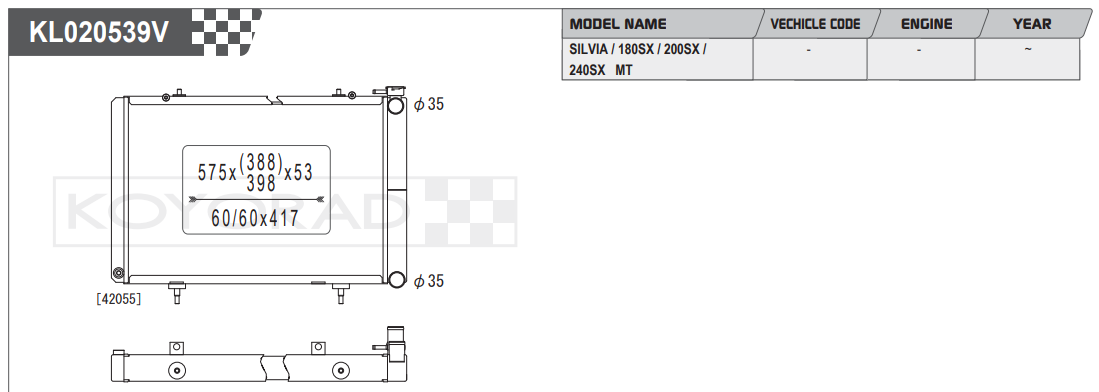

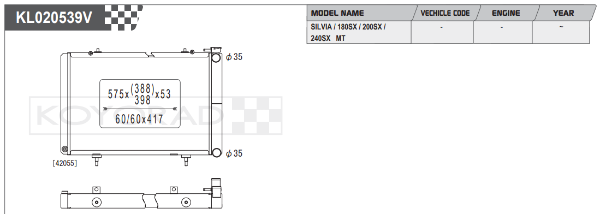

Diagrams:
Koyorad Code Notes
KS* 25mm core thickness, 1 row
KV* 36mm core thickness, 2 row
KH* 48mm core thickness, 2 row
KL* 53mm core thickness, 2 row
V / U06* at the end = deviation from OE
R* at the end = widerfin pitch
N* at the end = N flow, a partition in the tank to create N shape coolant flow for better cooling efficiency, triple pass
Material is Full Aluminum
Transmission - ALL MT type (No oil cooler), except for models with w/ OC indication. AT needs external oilcooler.
Fillerneck - All radiators with fillerneck are excl caps, these require the old system caps.
Please note that all cross references information are subject to errors and changes. Stock Images Used. Actual Product May Vary.
