Koyorad: Alloy Radiator : MITSUBISHI Eclipse 2.0 89-96 ( Without oil cooler)
Upgrade your Mitsubishi Eclipse (1995–1999, manual transmission with 4G63T turbo) with the Koyorad Hyper V‑Series Alloy Radiator (KV030680 / VH030680). Crafted entirely in Japan from aircraft-grade aluminum, this radiator features a high-density 36 mm core and advanced N‑Flo triple-pass internal design, significantly enhancing coolant flow and heat dissipation—up to 50% more effective than stock units. The radiator is precision TIG-welded and Nocolok-brazed, offering durability and reliability under daily driving and demanding track conditions . It installs as a direct-fit replacement using factory brackets, fans, hoses, and shrouds—no modifications required. Ideal for 4G63T builds prioritizing thermal efficiency and OEM-style fitment.
USA Part Nos.: VH030680
OEM Part Nos: MR127909
Car Models: Eclipse D3 / Talon 2.0 05/96-

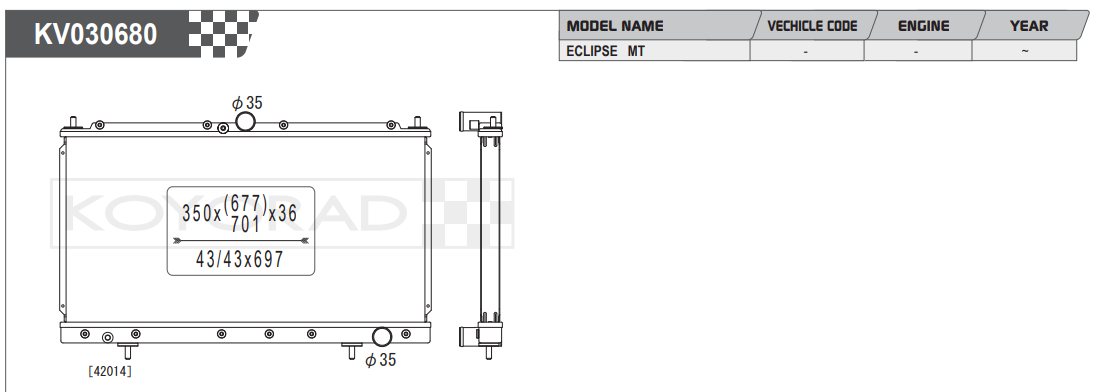

Diagrams:
Koyorad Code Notes
KS* 25mm core thickness, 1 row
KV* 36mm core thickness, 2 row
KH* 48mm core thickness, 2 row
KL* 53mm core thickness, 2 row
V / U06* at the end = deviation from OE
R* at the end = widerfin pitch
N* at the end = N flow, a partition in the tank to create N shape coolant flow for better cooling efficiency, triple pass
Material is Full Aluminum
Transmission - ALL MT type (No oil cooler), except for models with w/ OC indication. AT needs external oilcooler.
Fillerneck - All radiators with fillerneck are excl caps, these require the old system caps.
Please note that all cross references information are subject to errors and changes. Stock Images Used. Actual Product May Vary.
