Koyorad: Alloy Radiator (Dual pass): Mazda Savanna / RX-7 Man. 01/89-10/91 (Dual pass)
N-FLO Technology
This is Koyorad’s N-Flo Technology which allows for a double pass radiator. This design cools more efficiently by allowing the coolant to remain in the radiator for a longer period of time therefore transferring more heat to the surrounding air. N-Flo Technology is for cars that are known to have limited airflow to the radiator.
All Koyo Racing series radiators have "OE Specification" mounting location for stock mounting without major modifications; however we recommend using aftermarket electric fans for the best results. Koyo Hyper Radiator Caps are also available to increase your cooling system pressure to 1.3 bar for increased cooling capacity. Racing series radiators were made for manual transmission only, however with a separate automatic transmission cooler; one can use the Koyo Racing Radiator with automatics for increased cooling capacity.
USA Part Nos.: HH060643N
OEM Part Nos: N/A
Car Models: Savanna / RX-7 FC 1.3 01/89-
Engine code(s): 13B-T

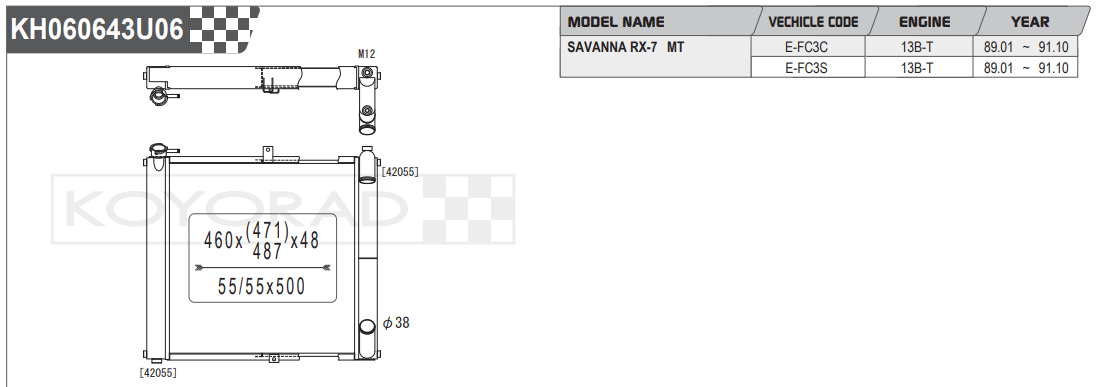

Diagrams:
Koyorad Code Notes
KS* 25mm core thickness, 1 row
KV* 36mm core thickness, 2 row
KH* 48mm core thickness, 2 row
KL* 53mm core thickness, 2 row
V / U06* at the end = deviation from OE
R* at the end = widerfin pitch
N* at the end = N flow, a partition in the tank to create N shape coolant flow for better cooling efficiency, triple pass
Material is Full Aluminum
Transmission - ALL MT type (No oil cooler), except for models with w/ OC indication. AT needs external oilcooler.
Fillerneck - All radiators with fillerneck are excl caps, these require the old system caps.
Please note that all cross references information are subject to errors and changes. Stock Images Used. Actual Product May Vary.
