Koyorad: Alloy Radiator: ISUZU D-Max 2.5 DiTD 10/02-
Upgrade your Isuzu D‑Max 2.5 DiTD (2002–2012, manual) with the Koyorad KH052084 alloy radiator. Engineered with a robust 16 mm brazed aluminium core and plastic end tanks, this direct-fit radiator ensures OEM-level performance with improved heat dissipation. Measuring 475 × 611 × 16 mm and equipped with 38 mm inlet/outlet, it fits models with or without A/C and includes mounting accessories. TIG-welded precision meets Nocolok brazing durability, making it an ideal solution for daily drivers and light industrial use. Please note: automatic transmission vehicles require a separate transmission cooler as this radiator is manual transmission–specific.
USA Part Nos.: N/A
OEM Part Nos: 8973333512
Car Models: D-Max 2.5d 05/02-

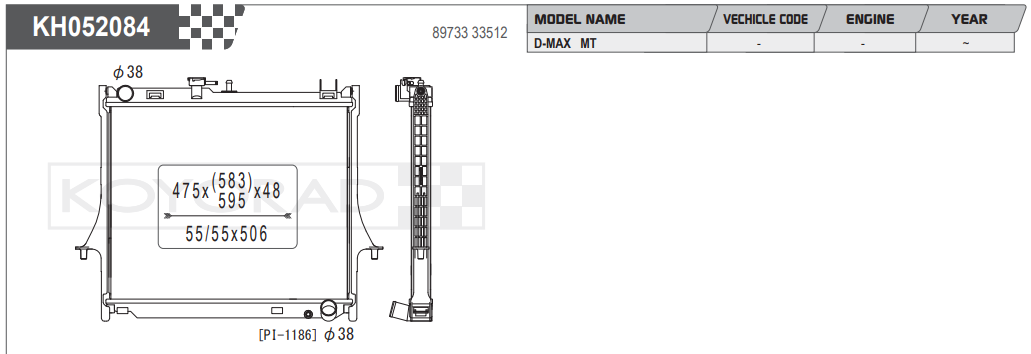

Diagrams:
Koyorad Code Notes
KS* 25mm core thickness, 1 row
KV* 36mm core thickness, 2 row
KH* 48mm core thickness, 2 row
KL* 53mm core thickness, 2 row
V / U06* at the end = deviation from OE
R* at the end = widerfin pitch
N* at the end = N flow, a partition in the tank to create N shape coolant flow for better cooling efficiency, triple pass
Material is Full Aluminum
Transmission - ALL MT type (No oil cooler), except for models with w/ OC indication. AT needs external oilcooler.
Fillerneck - All radiators with fillerneck are excl caps, these require the old system caps.
Please note that all cross references information are subject to errors and changes. Stock Images Used. Actual Product May Vary.
