Koyorad: Alloy Radiator: HYUNDAI Genesis Coupe 2.0 CVVT Man. 06/08-
Upgrade your Hyundai Genesis Coupe 2.0 L Turbo (manual, 2010–2017) with the Koyorad Hyper V-Series Alloy Radiator (Part No. KV812359). Built with Koyorad’s renowned Hyper V-Core high-density 36 mm design, this race-grade radiator delivers superior heat dissipation, offering around 44% greater core thickness and increased coolant dwell time over stock units. Precision TIG‑welded and Nocolok-brazed, it ensures durability, leak-free performance, and OEM-level mounting with no modifications required—keeping factory fans, hoses, and mounts intact . Reinforced for models with intercooler brackets and featuring a billet aluminum filler neck, this radiator provides a direct and robust cooling upgrade suited for both daily driving and enthusiast use.
USA Part Nos.: N/A
OEM Part Nos: 253102M500, 253102M540, 253102M300, 253102M320, 253102M600
Car Models: Genesis Coupe BK 2.0 06/08-

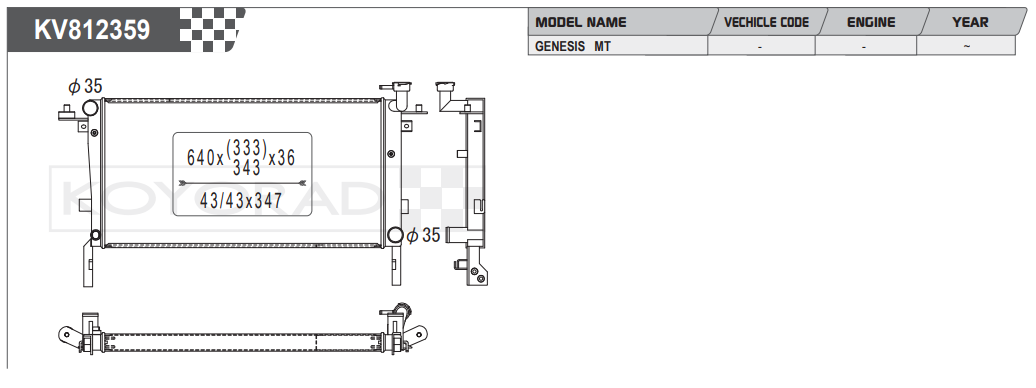

Diagrams:
Koyorad Code Notes
KS* 25mm core thickness, 1 row
KV* 36mm core thickness, 2 row
KH* 48mm core thickness, 2 row
KL* 53mm core thickness, 2 row
V / U06* at the end = deviation from OE
R* at the end = widerfin pitch
N* at the end = N flow, a partition in the tank to create N shape coolant flow for better cooling efficiency, triple pass
Material is Full Aluminum
Transmission - ALL MT type (No oil cooler), except for models with w/ OC indication. AT needs external oilcooler.
Fillerneck - All radiators with fillerneck are excl caps, these require the old system caps.
Please note that all cross references information are subject to errors and changes. Stock Images Used. Actual Product May Vary.
