Koyorad: Alloy Radiator: HYUNDAI Genesis Coupe 2.0 CVVT Man. 06/08-
Enhance your Hyundai Genesis Coupe 2.0 Turbo or 3.8 V6 MT (2008–2017) with the Koyorad Hyper V‑Series Alloy Radiator (Part No. KV812089R). This high-performance, direct-fit radiator features a 36 mm Hyper V-Core with N-Flo coolant routing, delivering significantly improved heat dissipation and coolant dwell time—ideal for both spirited driving and track use. Crafted from premium aluminum, it’s TIG-welded and Nocolok-brazed, ensuring long-lasting durability and OEM-fit installation with no modifications needed—retaining stock hoses, mounts, and fans. A billet filler neck and 1/8″ sensor port add polish, while N-Flo design provides enhanced thermal performance in a plug-and-play package.
USA Part Nos.: N/A
OEM Part Nos: 253102M500, 253102M540, 253102M300, 253102M320, 253102M600
Car Models: Genesis Coupe BK 2.0/3.8 01/08-

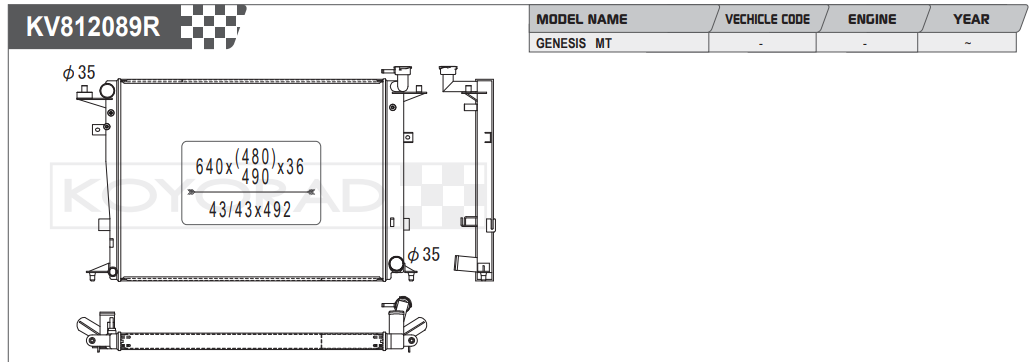

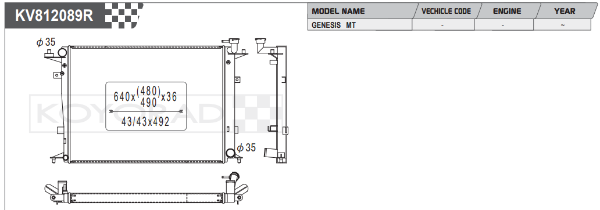

Diagrams:
Koyorad Code Notes
KS* 25mm core thickness, 1 row
KV* 36mm core thickness, 2 row
KH* 48mm core thickness, 2 row
KL* 53mm core thickness, 2 row
V / U06* at the end = deviation from OE
R* at the end = widerfin pitch
N* at the end = N flow, a partition in the tank to create N shape coolant flow for better cooling efficiency, triple pass
Material is Full Aluminum
Transmission - ALL MT type (No oil cooler), except for models with w/ OC indication. AT needs external oilcooler.
Fillerneck - All radiators with fillerneck are excl caps, these require the old system caps.
Please note that all cross references information are subject to errors and changes. Stock Images Used. Actual Product May Vary.
