Koyorad: Alloy Radiator: HYUNDAI Genesis Coupe 2.0 CVVT Man. 06/08-
Enhance your Hyundai Genesis Coupe 2.0 L Turbo manual (2008–2017) cooling performance with the Koyorad Hyper V-Series Alloy Radiator (Part No. KV812089). This direct-fit, high-performance radiator features a 36 mm Hyper V‑Core including precise N‑Flo coolant routing, providing significantly improved heat dissipation and increased coolant dwell time compared to stock units—all without modifying your factory fans, hoses, or mounting points. Crafted from premium aluminium, with TIG-welded end tanks, Nocolok brazed cores, a billet filler neck, and triple pressure-tested for reliability, it’s ideal for daily driving, spirited roads, and track use
USA Part Nos.: N/A
OEM Part Nos: 253102M500, 253102M540, 253102M300, 253102M320, 253102M600
Car Models: Genesis Coupe BK 2.0/3.8 01/08-

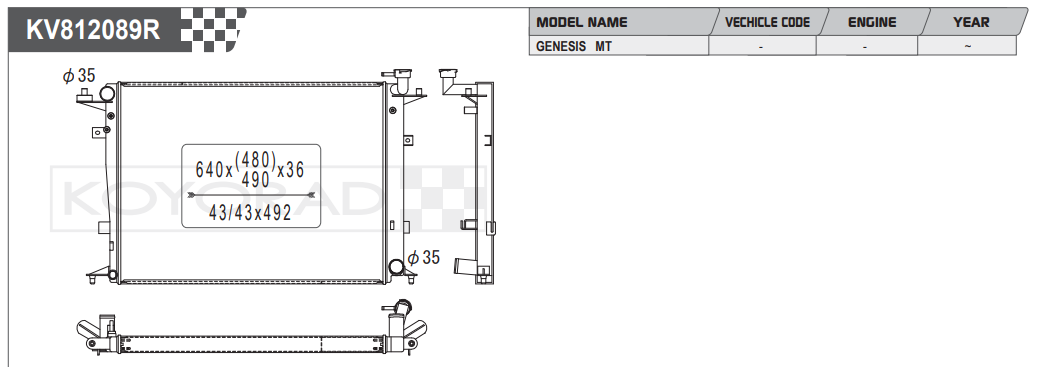

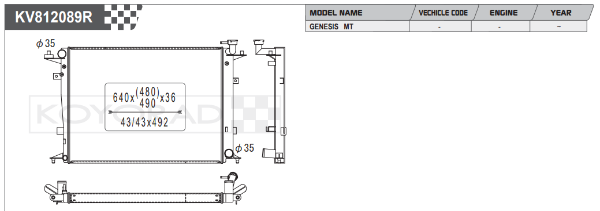

Diagrams:
Koyorad Code Notes
KS* 25mm core thickness, 1 row
KV* 36mm core thickness, 2 row
KH* 48mm core thickness, 2 row
KL* 53mm core thickness, 2 row
V / U06* at the end = deviation from OE
R* at the end = widerfin pitch
N* at the end = N flow, a partition in the tank to create N shape coolant flow for better cooling efficiency, triple pass
Material is Full Aluminum
Transmission - ALL MT type (No oil cooler), except for models with w/ OC indication. AT needs external oilcooler.
Fillerneck - All radiators with fillerneck are excl caps, these require the old system caps.
Please note that all cross references information are subject to errors and changes. Stock Images Used. Actual Product May Vary.
