Koyorad: Alloy Radiator: HYUNDAI Lantra IV 1.6 i Man
Upgrade your Hyundai Lantra IV 1.6 i (2000–2006, manual transmission) with the Koyorad KV811700R alloy radiator. This direct-fit, high-quality radiator features a 36 mm thick all-aluminum core, designed to match or exceed OEM standards with superior heat dissipation and durability. Precision TIG-welded and Nocolok-brazed, it ensures leak-proof performance and resistance to vibration. The radiator installs easily with existing hoses, fan shroud, and mounts—no modifications required. Whether you're commuting or pushing performance, this radiator keeps cooling efficiency high and temperatures stable.
USA Part Nos.: N/A
OEM Part Nos: 253102D100
Car Models: Coupe / Tiburon / Tuscani GK 2.0/2.7 01/01-

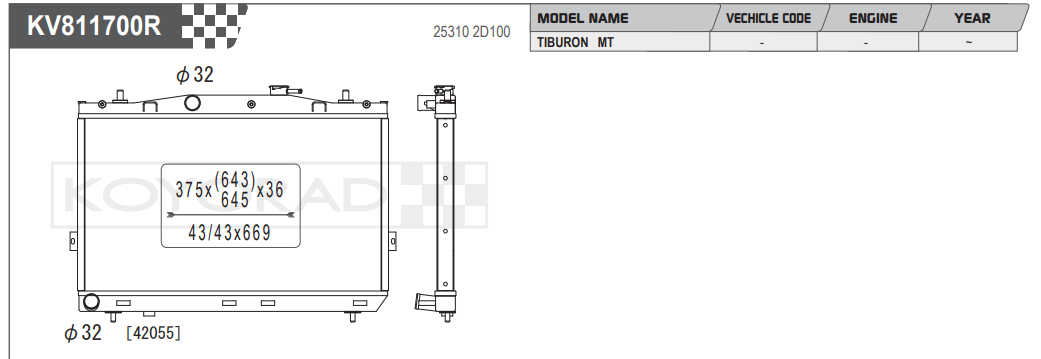

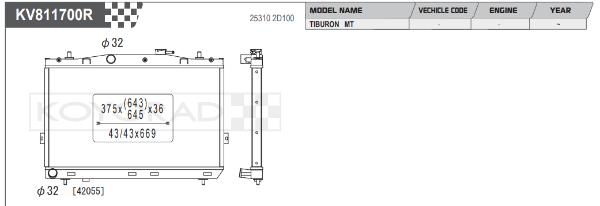

Diagrams:
Koyorad Code Notes
KS 25mm core thickness, 1 row
KV* 36mm core thickness, 2 row
KH* 48mm core thickness, 2 row
KL* 53mm core thickness, 2 row
V / U06* at the end = deviation from OE
R* at the end = widerfin pitch
N* at the end = N flow, a partition in the tank to create N shape coolant flow for better cooling efficiency, triple pass
Material is Full Aluminum
Transmission - ALL MT type (No oil cooler), except for models with w/ OC indication. AT needs external oilcooler.
Fillerneck - All radiators with fillerneck are excl caps, these require the old system caps.
Please note that all cross references information are subject to errors and changes. Stock Images Used. Actual Product May Vary.
